Spot Profile Lights
Sharp Precision, Designed for the Spotlight

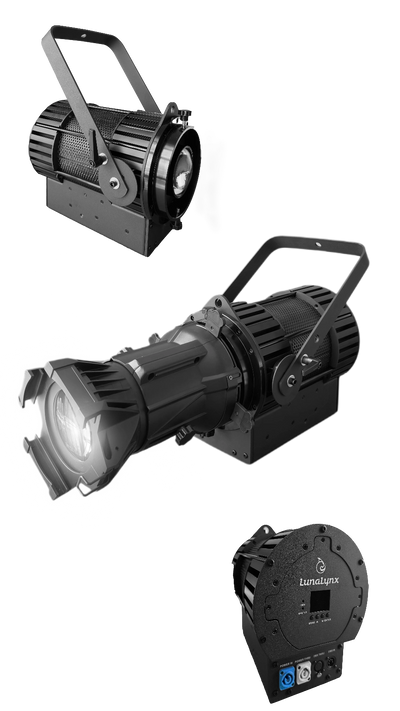

Lunalynx Spot Profile Lights (LED leko) are crafted for pinpoint accuracy and striking stage effects. Engineered with efficiency, style, and customization in mind, these fixtures deliver crisp beams and detailed projections, perfect for theatrical profiling and spotlighting. Tailor your LED optics, power output, housing, and optics to meet any performance demand—built with Lunalynx’s OEM expertise.
LED Arrays
- Options: RGBL (Red, Green, Blue, Lime), RGBA (Red, Green, Blue, Amber), 3200K, 5600K, or RGBALC 6-color configurations
- Custom Arrays: Bespoke LED combinations available on request
Power Output
- 150W: Fanless design for silent operation
- 350W-450W: High-output with efficient thermal cooling
- Lumen Range: 5,000 to 20,000+ (LED/power-dependent)
Optical Properties
- Lens Type: Profile lens for sharp, defined beams
- Color: Smart Color Calibration system
- Color CCT Presets: 2800K - 10000K
- Material: High grade glass reflector
- Beam Angle: Lens barrel from 5°- 50°
- Light Distribution: Crisp, focused illumination with gobo compatibility
- Color Rendering Index (CRI): > 90 for accurate, vivid colors
- Dimming: 0 - 100% linear, 4 selectable curves
- PWM: 1200 - 20000Hz
Physical Characteristics
- Weight: Lightweight, 6-10 kg (varies by size and configuration)
- Housing: Die-cast aluminum or aluminum alloy
- Finish: Customizable colors (e.g., matte black, white)
Technology & Performance
- Compatibility: Optimized for high-output LED sources
- Focus Mechanism: Manual or motorized zoom (optional)
- Beam Control: Precision optics for sharp edging and gobo projection
- Thermal Resistance: Heat-tolerant up to 80°C (176°F) continuous operation
- Cooling: Intelligent temperature-controlled fan with heatsink; fanless for 150W
Electrical Integration
- Control Protocols: DMX512 and RDM compatible
- Display: Mono to color display for intuitive control
- Input voltage: 100-240VAC 50/60Hz
- Data connection: 5-pin XLR
Durability & Environmental
- Impact Resistance: High durability for professional environments
- IP Rating: IP20 standard (indoor), upgradable to IP65 (weather-resistant)
- Operating Temperature: -20°C to 40°C (-4°F to 104°F)
- Lifespan: > 50,000 to L70
- Compliance: CE, CETLus, PSE certified
Applications
- Primary Use: Theatrical spotlights, stage profiling, gobo projection
- Versatility: Ideal for live performances, studios, and precision lighting tasks
Custom specifications available upon request.
