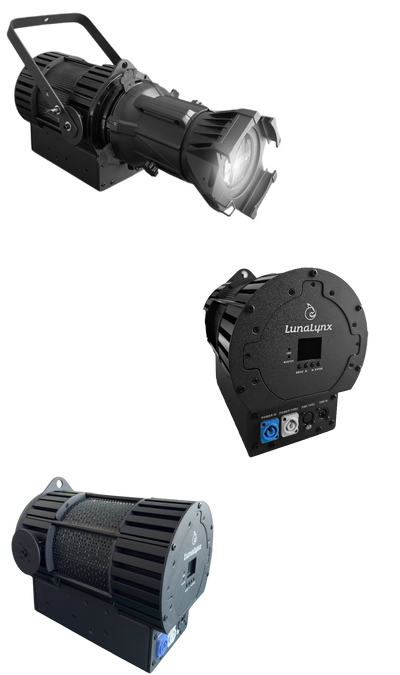

150W Spot Profile Lights (Fanless)
Fanless, Lime Boost Red, Whisper for Churches.
Sleek 150W spot/profile light, perfect for vibrant theater illumination with RGBL versatility. Delivers exceptional adaptability and quiet performance, ideal for close-up stage settings. Includes fanless hybrid cooling for energy efficiency, RDM compatibility for seamless control, and adjustable PWM to ensure flicker-free recordings.
LED Arrays
- Options: RGBL (Red, Green, Blue, Lime)
- Custom Arrays: Bespoke LED combinations available on request
Power Output
- 150W: Fanless design for silent operation
- Lumen Range: > 4,000
Optical Properties
- Lens Type: Profile lens for sharp, defined beams
- Color: Smart Color Calibration system
- Color CCT Presets: 2800K - 10000K
- Material: High grade glass reflector
- Beam Angle: Lens barrel from 5°- 50°
- Light Distribution: Crisp, focused illumination with gobo compatibility
- Color Rendering Index (CRI): > 90 for accurate, vivid colors
- Dimming: 0 - 100% linear, 4 selectable curves
- PWM: 5000 - 25000Hz
Physical Characteristics
- Weight: Lightweight, 8kg (17.6lbs)
- Housing: Die-cast aluminum or aluminum alloy
- Finish: Customizable colors (e.g., matte black, white)
Technology & Performance
- Compatibility: Optimized for high-output LED sources
- Focus Mechanism: Manual zoom
- Beam Control: Precision optics for sharp edging and gobo projection
- Thermal Resistance: Heat-tolerant up to 70°C (158°F) continuous operation with temp sensor
- Cooling: Intelligent temperature-controlled, sealed-loop copper pipe heatsink
Electrical Integration
- Control Protocols: DMX512 and RDM compatible
- Display: Mono to color display for intuitive control
- Input voltage: 100-240VAC 50/60Hz
- Data connection: 5-pin XLR
Durability & Environmental
- Impact Resistance: High durability for professional environments
- IP Rating: IP20 standard (indoor), upgradable to IP65 (weather-resistant)
- Operating Temperature: 0 - 40°C (32 - 104°F) with humidity of 5-95% non-condensing
- Lifespan: > 50,000 to L70
- Compliance: CE, RoHS, FCC Part 15, PSE
Applications
- Primary Use: Theatrical spotlights, stage profiling, gobo projection
- Versatility: Ideal for live performances, studios, and precision lighting tasks
- Optional barrels: Fixed (19°,26°,36°,50°)
Custom specifications available upon request.
