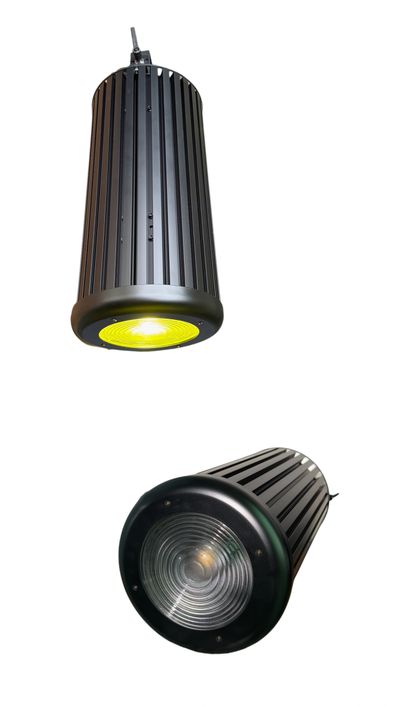

160W RGBLAC Fanless

---

Experience premium color versatility with an ultra-wide 2000-10000K CCT and tempered glass Fresnel lens. This model provides over 10,000 lumens and rich RGBLAC mixing in a robust housing with fanless cooling and temperature monitoring. Designed for theaters, film sets, churches, and premium events where beam quality matters most.

• Options: RGBLAC, 6-color mixing
• Custom Arrays: Bespoke LED combinations available on request

• 160W: Fanless design of true 160W
• Lumen Range: 10000+

• Lens Type: VersaOptics module with tempered glass fresnel
• Color: Smart Color Calibration system
• Color CCT Presets: 2000K - 10000K
• Beam Angle: 40°
• Color Rendering Index (CRI): > 80 for accurate, vivid colors
• Dimming: 0 - 100% linear, 4 selectable curves
• PWM: 5000 - 25000Hz

• Sizes: 16.7 x 11.4" (424 x 210mm)
• Weight: Lightweight, 18.8lbs (8.5kg)
• Housing: Aluminum alloy
• Finish: Customizable colors (e.g., matte black, white)

• Compatibility: Optimized for high-output LED sources
• True Power Output: Constant true power output with excellent thermal control
• Thermal Resistance: Heat-tolerant up to 80°C (176°F) continuous operation
• Cooling: Intelligent temperature-controlled fan with heatsink; fanless for 150W

• Control Protocols: DMX512 and RDM compatible
• Display: Color display for intuitive control
• Input voltage: 100-240VAC 50/60Hz
• Data connection: 5-pin XLR

• Impact Resistance: High durability for professional environments
• IP Rating: IP20 standard (indoor)
• Operating Temperature: 0 - 40°C (32 - 104°F) with humidity of 5-95% non-condensing
• Lifespan: > 50,000 to L70
• Compliance: CE, RoHS, FCC Part 15, PSE

• Primary Use: Theaters & stage, event venues, churches and worship spaces
• Versatility: Ideal for live performances, broadcast studios, churches, events, and precision architectural lighting

Custom specifications available upon request.
