230W Hybrid Dimming Profile
DimMaster dimming or DMX dimming, your call !

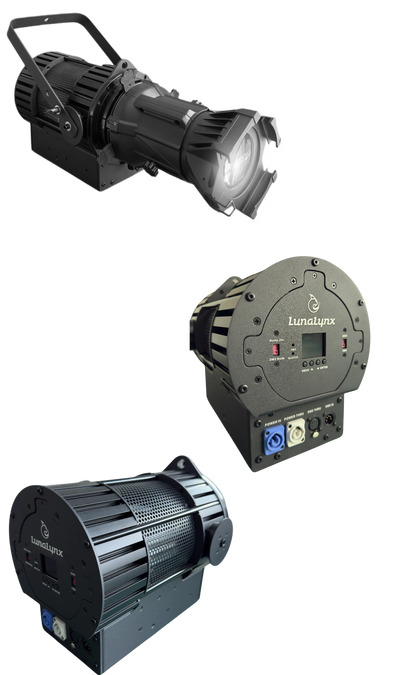

Versatile 230W hybrid control profile light at 3000K/5000K, delivering crisp tunable white illumination with advanced DimMaster Mains and PWM DMX hybrid dimming for precise control. Perfect for seamless intensity adjustments across professional stage setups, it ensures flicker-free performance and robust reliability. Features silent fan system, high CRI >95 for warm white or cool white, and enhanced performance through hybrid dimming technology.
LED Arrays
- Options: 3000K or 5000K COB
Power Output
- 230W: Silent fan operation
- Lumen Range: > 9,000
Optical Properties
- Lens Type: Profile lens for sharp, defined beams
- Color: Smart Color Calibration system
- Color CCT Presets: 2800K - 10000K
- Material: High grade glass reflector
- Beam Angle: Lens barrel from 5°- 50°
- Light Distribution: Crisp, focused illumination with gobo compatibility
- Color Rendering Index (CRI): > 95 RA@3000K
- Dimming: 0 - 100% linear, 4 selectable curves
- PWM: 5000 - 25000Hz
Physical Characteristics
- Weight: Lightweight, 8.2kg (18lbs) w/o lens barrels
- Housing: Aluminum alloy
- Finish: Customizable colors (e.g., matte black, white)
Technology & Performance
- Compatibility: Optimized for high-output LED sources
- Focus Mechanism: Manual zoom
- Beam Control: Precision optics for sharp edging and gobo projection
- Thermal Resistance: Heat-tolerant up to 80°C (158°F) continuous operation with temp sensor
- Cooling: Intelligent temperature-controlled, sealed-loop copper pipe heatsink
Electrical Integration
- Control Protocols: DMX512 and RDM compatible
- Display: Mono to color display for intuitive control
- Input voltage: 100-240VAC 50/60Hz
- Data connection: 5-pin XLR
Durability & Environmental
- Impact Resistance: High durability for professional environments
- IP Rating: IP20 standard (indoor), upgradable to IP65 (weather-resistant)
- Operating Temperature: 0 - 40°C (32 - 104°F) with humidity of 5-95% non-condensing
- Lifespan: > 50,000 to L70
- Compliance: CE, RoHS, FCC Part 15, PSE
Applications
- Primary Use: Theatrical spotlights, stage profiling, gobo projection
- Versatility: Ideal for live performances, studios, and precision lighting tasks
- Optional barrels: Fixed (19°,26°,36°,50°)
Custom specifications available upon request.
