Stage Downlights
Sharp Precision, Designed for the Spotlight

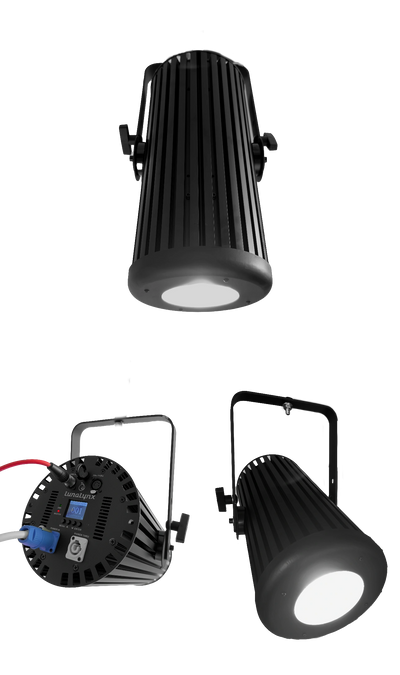

Elegant 160W fanless downlight, offering rich RGBW+Amber colors for architectural and event lighting accents. Its compact form and silent performance make it a top choice for subtle yet impactful illumination in any space. Includes wide beam angles, DMX compatibility, and energy-efficient LED technology. Especially good for churches, school hall and museums.
LED Arrays
- Options: RGBW+A (Red, Green, Blue, White, plus Amber for enrichment.)
- Custom Arrays: Bespoke LED combinations available on request
Power Output
- 160W: Fanless design for silent operation
- 350W-450W: High-output with efficient thermal cooling
- Lumen Range: 8000+ (LED/power-dependent)
Optical Properties
- Lens Type: Acrylic diffusers or tempered glass fresnel available.
- Color: Smart Color Calibration system
- Color CCT Presets: 3200K - 6500K
- Beam Angle: 45°or 60°
- Color Rendering Index (CRI): > 80 for accurate, vivid colors
- Dimming: 0 - 100% linear, 4 selectable curves
- PWM: 5000 - 25000Hz
Physical Characteristics
- Weight: Lightweight, 8.5kg (18.8lbs) (varies by size and configuration)
- Housing: Aluminum alloy
- Finish: Customizable colors (e.g., matte black, white)
Technology & Performance
- Compatibility: Optimized for high-output LED sources
- True Power Output: Constant true power output with excellent thermal control
- Thermal Resistance: Heat-tolerant up to 80°C (176°F) continuous operation
- Cooling: Intelligent temperature-controlled fan with heatsink; fanless for 150W
Electrical Integration
- Control Protocols: DMX512 and RDM compatible
- Display: Color display for intuitive control
- Input voltage: 100-240VAC 50/60Hz
- Data connection: 5-pin XLR
Durability & Environmental
- Impact Resistance: High durability for professional environments
- IP Rating: IP20 standard (indoor), upgradable to IP65 (weather-resistant)
- Operating Temperature: 0 - 40°C (32 - 104°F) with humidity of 5-95% non-condensing
- Lifespan: > 50,000 to L70
- Compliance: CE, RoHS, FCC Part 15, PSE
Applications
- Primary Use: Theatrical spotlights, stage profiling, gobo projection
- Versatility: Ideal for live performances, studios, and precision lighting tasks
Custom specifications available upon request.
